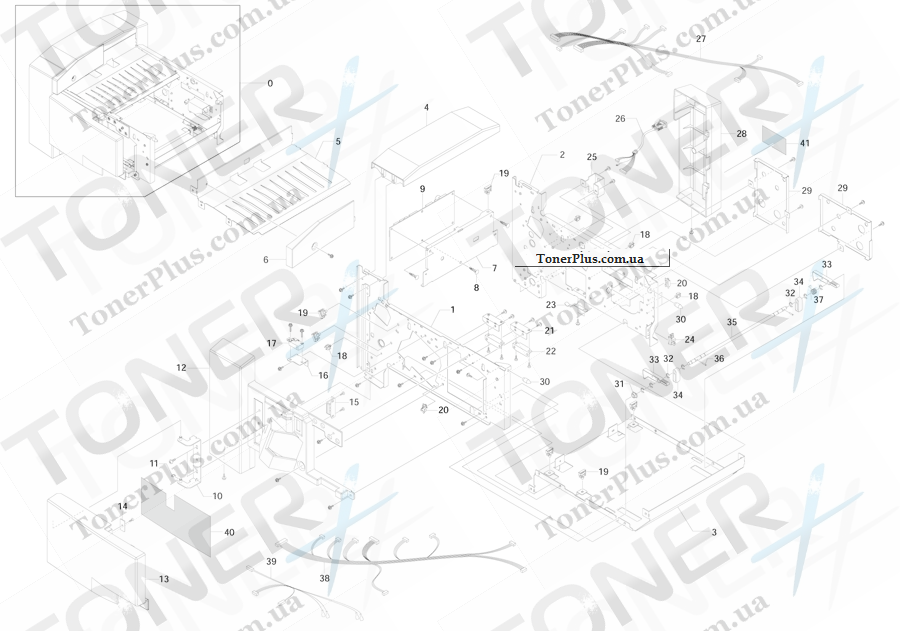

| 0 |
- |
FRAME UNIT |
|
|
| 0 |
- |
FRAME UNIT |
|
|
| 1 |
- |
ASSY:SIDE PLATE:FRONT |
|
|
| 1 |
- |
ASSY:SIDE PLATE:FRONT |
|
|
| 10 |
- |
ASSY:HINGE:DOOR |
|
|
| 10 |
- |
ASSY:HINGE:DOOR |
|
|
| 11 |
- |
E-RING:4 |
|
|
| 11 |
- |
E-RING:4 |
|
|
| 12 |
JC81-03768B |
AS-COVER FRONT |
|
|
| 13 |
JC81-03488B |
AS-COVER DOOR ASSY |
|
|
| 13-1 |
- |
COVER-DOOR |
|
|
| 13-1 |
- |
COVER-DOOR |
|
|
| 13-2 |
- |
HANDLE-DOOR |
|
|
| 13-2 |
- |
HANDLE-DOOR |
|
|
| 13-3 |
- |
LABEL-STAPLE REPLACE |
|
|
| 13-3 |
- |
LABEL-STAPLE REPLACE |
|
|
| 13-4 |
- |
MAGNET CATCH PLATE:12x26 |
|
|
| 13-4 |
- |
MAGNET CATCH PLATE:12x26 |
|
|
| 13-5 |
- |
SCREW-TAPTITEFH,+,B,M3,L8 |
|
|
| 13-5 |
- |
SCREW-TAPTITEFH,+,B,M3,L8 |
|
|
| 15 |
JC81-03468A |
AS-MAGNET ASSY |
|
|
| 16 |
- |
BKT:INTER LOCK:DOOR OPEN |
|
|
| 16 |
- |
BKT:INTER LOCK:DOOR OPEN |
|
|
| 17 |
JC81-03469A |
AS-SWITCH MICRO |
|
|
| 18 |
- |
MICRO WIRE SADDLE |
|
|
| 18 |
- |
MICRO WIRE SADDLE |
|
|
| 19 |
- |
SIDE LOCKING SADDLE |
|
|
| 19 |
- |
SIDE LOCKING SADDLE |
|
|
| 2 |
- |
ASSY:SIDE PLATE:REAR |
|
|
| 2 |
- |
ASSY:SIDE PLATE:REAR |
|
|
| 20 |
- |
COVER SADDLE:DS-1 |
|
|
| 20 |
- |
COVER SADDLE:DS-1 |
|
|
| 21 |
- |
BKT:MAGNET:GUIDE |
|
|
| 21 |
- |
BKT:MAGNET:GUIDE |
|
|
| 23 |
- |
LEAF SPRING:EARTH |
|
|
| 23 |
- |
LEAF SPRING:EARTH |
|
|
| 24 |
0604-001095 |
PHOTO-INTERRUPTER |
|
|
| 26 |
JC81-03470A |
AS-MH INTER FACE ASSY |
|
|
| 27 |
- |
ASSY:M/H:REAR FRAME |
|
|
| 27 |
- |
ASSY:M/H:REAR FRAME |
|
|
| 28 |
JC81-03490B |
AS-COVER REAR |
|
|
| 29 |
- |
BKT:COVER:REAR |
|
|
| 29 |
- |
BKT:COVER:REAR |
|
|
| 3 |
- |
BASE:LOWER |
|
|
| 3 |
- |
BASE:LOWER |
|
|
| 30 |
- |
STUD:SET |
|
|
| 30 |
- |
STUD:SET |
|
|
| 31 |
JC61-00423A |
BUSH-6_D |
|
|
| 32 |
- |
E-RING:4 |
|
|
| 32 |
- |
E-RING:4 |
|
|
| 33 |
- |
HOOK:INSTALL |
|
|
| 33 |
- |
HOOK:INSTALL |
|
|
| 34 |
- |
GUIDE:SET |
|
|
| 34 |
- |
GUIDE:SET |
|
|
| 35 |
- |
SHAFT:HOOK:SET |
|
|
| 35 |
- |
SHAFT:HOOK:SET |
|
|
| 36 |
- |
PARALLEL PIN:2x10 |
|
|
| 36 |
- |
PARALLEL PIN:2x10 |
|
|
| 37 |
- |
T-SPRING:HOOK:SET |
|
|
| 37 |
- |
T-SPRING:HOOK:SET |
|
|
| 38 |
- |
ASSY:M/H:FRONT FRAME |
|
|
| 38 |
- |
ASSY:M/H:FRONT FRAME |
|
|
| 39 |
- |
ASSY:M/H:INTER LOCK |
|
|
| 39 |
- |
ASSY:M/H:INTER LOCK |
|
|
| 4 |
JC81-03487B |
AS-COVER TOP |
|
|
| 40 |
- |
RATING-LABEL |
|
|
| 40 |
- |
RATING-LABEL |
|
|
| 5 |
- |
STAY:DUPLEX GUIDE |
|
|
| 5 |
- |
STAY:DUPLEX GUIDE |
|
|
| 6 |
JC81-03767B |
AS-COVER SCAN DUMMY |
|
|
| 7 |
- |
BKT:MAIN PCB |
|
|
| 7 |
- |
BKT:MAIN PCB |
|
|
| 8 |
- |
BUTTON LOCKING SUPPORT:BLSS12 |
|
|
| 8 |
- |
BUTTON LOCKING SUPPORT:BLSS12 |
|
|
| 9 |
JC81-03467A |
AS-PCB MAIN ASSY |
|
|
