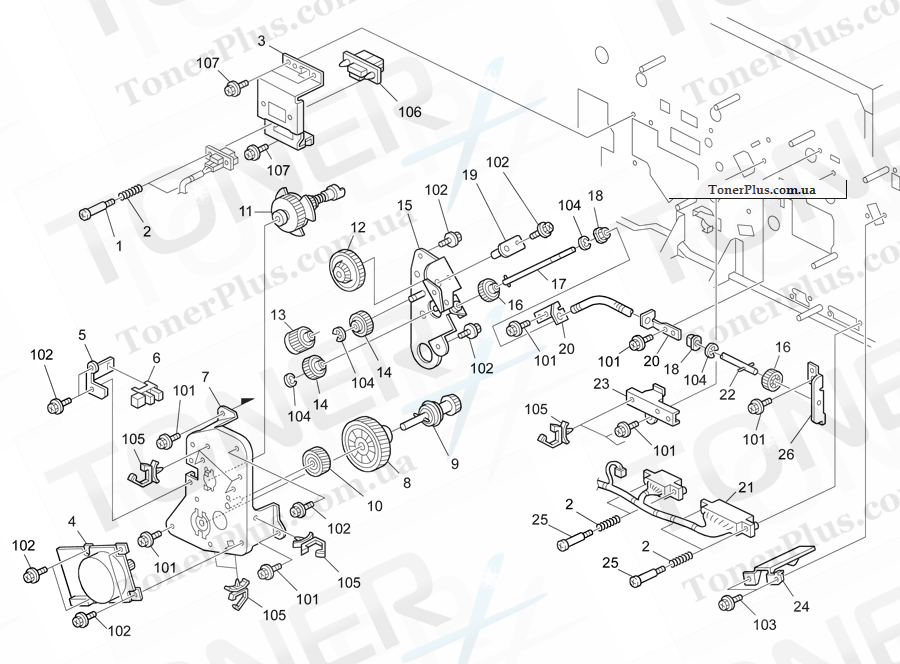

| 1 |
AA14 3794 |
Screw:Spring:Drawer |
|
|
| 10 |
AB01 0144 |
Gear:64Z |
|
|
| 11 |
D014 1331 |
Shaft:Drive:Cleaning |
|
|
| 12 |
AB01 7746 |
Gear:46Z/25Z |
|
|
| 13 |
AB01 7747 |
Gear:25Z/25Z |
|
|
| 14 |
AB01 1274 |
Gear:25Z |
|
|
| 15 |
D014 1338 |
Bracket:Plate |
|
|
| 16 |
AB01 1273 |
Gear:24Z |
|
|
| 17 |
D014 1343 |
Toner Recycling Unit |
|
|
| 18 |
AA08 2063 |
Bushing - 8x10x5 |
|
|
| 19 |
D014 1328 |
Stud:Bracket |
|
|
| 2 |
AA06 3670 |
Spring Connector:9.8n |
|
|
| 20 |
D014 1350 |
Holder:Toner Recycling Unit |
|
|
| 21 |
D014 5260 |
Harness:Duplex:Drb:Drawer |
|
|
| 22 |
D014 1345 |
Shaft:Horizontal |
|
|
| 23 |
D014 1351 |
Cover:Toner Recycling Unit:Shaft |
|
|
| 24 |
B132 7107 |
Bracket:Spring Plate:Assy |
|
|
| 25 |
AA14 3797 |
Connector Guide Pin |
|
|
| 26 |
D014 1344 |
Holder:Drive Unit |
|
|
| 3 |
B132 1020 |
Bracket:Drawer:Paper Feed Unit |
|
|
| 4 |
AX06 0361 |
Motor:DC24V 17W |
|
|
| 5 |
B132 1307 |
Bracket:Sensor |
|
|
| 6 |
AW02 0145 |
Photointerruptor:Flat |
|
|
| 7 |
D014 1334 |
Bracket:Brushless Motor |
|
|
| 8 |
AB01 0145 |
Gear:96Z |
|
|
| 9 |
D014 1326 |
Shaft:Drive:Transfer |
|
|
