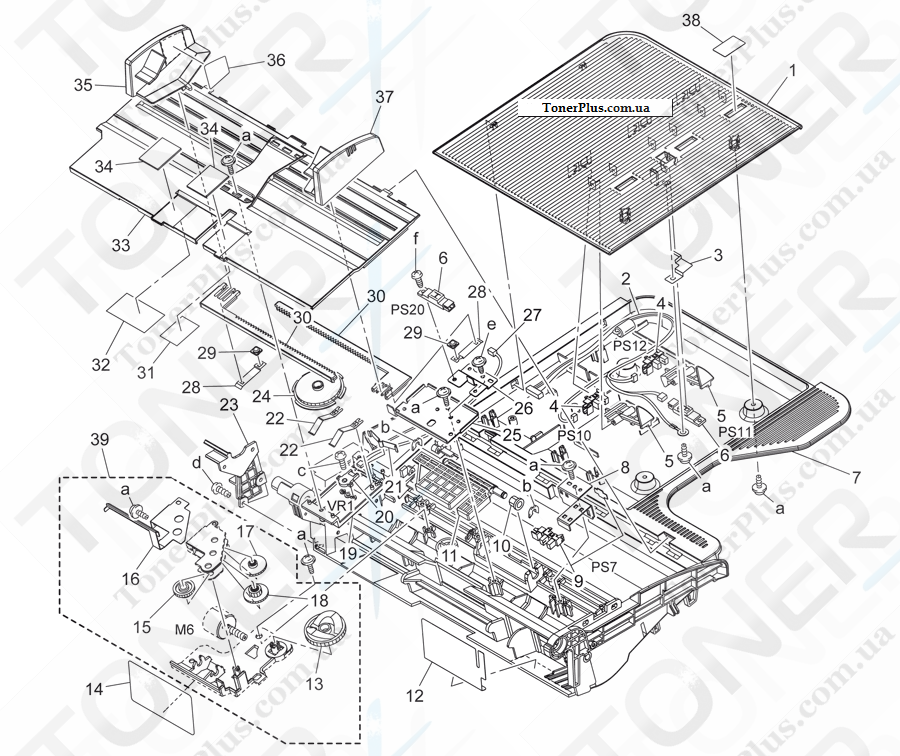

Каталог запчастей для Konica-Minolta bizhub C452 - ADF PAPER FEED TRAY
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
A01H 5602 01 |
BRACKET |
|
|
| 10 |
4469 3465 01 |
BUSHING |
|
|
| 11 |
A01H 5618 00 |
Lever |
|
|
| 12 |
9J07 3036 02 |
GUIDE |
|
|
| 13 |
4641 3417 02 |
CAM |
|
|
| 14 |
9J07 3037 01 |
GUIDE |
|
|
| 15 |
4641 3414 01 |
GEAR 14/37T |
|
|
| 16 |
9J07 3206 01 |
PLATE SPRING |
|
|
| 17 |
4641 3436 01 |
GEAR 30T |
|
|
| 18 |
4641 3415 01 |
GEAR 13/28T |
|
|
| 19 |
9J07 3106 03 |
BRACKET |
|
|
| 2 |
A0HT N102 00 |
ADF Wiring |
|
|
| 20 |
V801 3000 06 |
RESISTOR |
|
|
| 21 |
9J07 3104 01 |
STOPPER |
|
|
| 22 |
9J07 5600 00 |
PLATE SPRING |
|
|
| 23 |
A0HT 5604 00 |
Cover |
|
|
| 24 |
9J07 3105 02 |
GEAR 40T |
|
|
| 25 |
A0HT 5620 00 |
Reinforce Plate |
|
|
| 26 |
A0HT 5621 00 |
Mounting Plate |
|
|
| 27 |
9J07 6807 01 |
WIRE HARNESS ASSY |
|
|
| 28 |
A01H 5611 00 |
Plate spring |
|
|
| 29 |
A01H 5612 00 |
GUIDE |
|
|
| 3 |
9J07 3108 01 |
BRACKET |
|
|
| 30 |
9J07 3103 13 |
Rack |
|
|
| 31 |
A01H 5615 00 |
Spacer |
|
|
| 32 |
A01H 5616 01 |
Spacer |
|
|
| 33 |
A01H 5607 02 |
Lifting Plate |
|
|
| 34 |
4641 3503 01 |
SEAL |
|
|
| 35 |
A01H 5605 00 |
REGULATING PLATE |
|
|
| 36 |
9J07 9401 00 |
LABEL MAX |
|
|
| 37 |
A01H 5604 00 |
REGULATING PLATE |
|
|
| 38 |
A0HT 5615 00 |
Label Blindfold |
|
|
| 39 |
A0HT R705 00 |
Lifting Motor assy |
|
|
| 4 |
9335 1300 61 |
PHOTO INTERRUPTER |
|
|
| 5 |
A01H 5606 00 |
ACTUATOR |
|
|
| 6 |
9J07 M500 00 |
PHOTOREFLECTOR |
|
|
| 7 |
A01H 5601 00 |
TRAY |
|
|
| 8 |
9J07 3033 01 |
BRACKET |
|
|
| 9 |
4037 0906 01 |
PHOTO INTERRUPTER |
|
|
