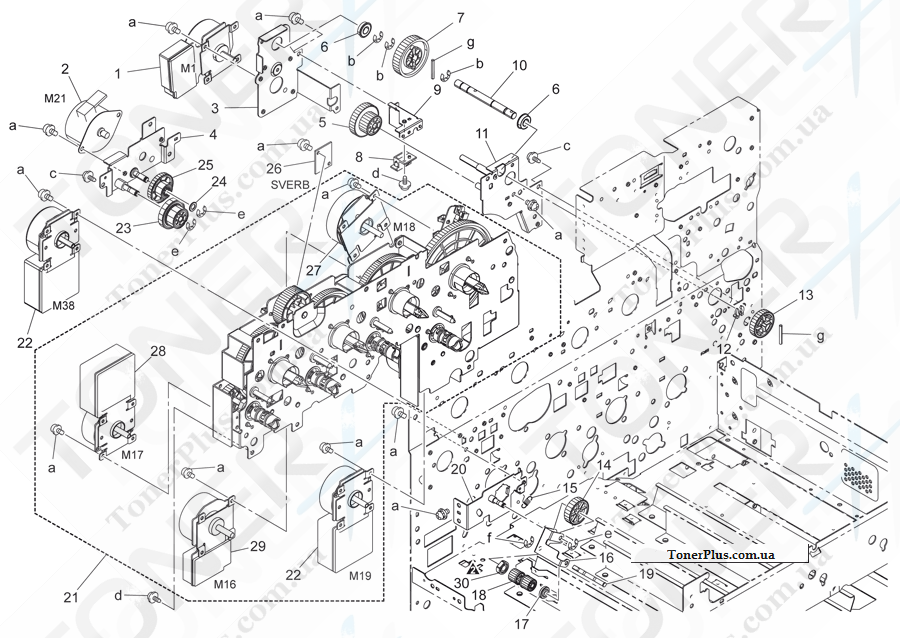

Каталог запчастей для Konica-Minolta bizhub C451 - MAIN DRIVE UNIT
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
A00J M113 00 |
Brushless motor /12 |
|
|
| 10 |
A00J 2203 00 |
Transfer Shaft /A |
|
|
| 11 |
A00J R7B7 00 |
TRANSFER FRAME / B |
|
|
| 12 |
1164 3065 01 |
STOPPER RING |
|
|
| 13 |
A00J 2201 02 |
Gear 59T |
|
|
| 14 |
A00J 2281 00 Old |
Gear 55T |
|
|
| 14 |
A00J 2281 11 |
Gear 55T |
|
|
| 15 |
4004 2582 01 |
TENSION SPRING |
|
|
| 16 |
A00J 2284 12 |
Transfer Frame /E |
|
|
| 16 |
A00J 2284 01 Old |
Transfer Frame /E |
|
|
| 17 |
A00J 2283 00 |
Transfer Roll /1 |
|
|
| 18 |
A00J 2282 00 |
Gear 25/25T |
|
|
| 19 |
A00J 2287 00 Old |
Transfer Shaft /B |
|
|
| 19 |
A00J 2287 11 |
Transfer Shaft /B |
|
|
| 2 |
9314 1400 71 |
MOTOR |
|
|
| 20 |
A00J R7B8 00 |
TRANSFER FREME / F |
|
|
| 21 |
A00J R704 00 |
MAIN DRIVE UNIT |
|
|
| 22 |
A00J M114 01 |
Brushless motor /20 |
|
|
| 23 |
A00J 2251 00 |
Gear 22/33T |
|
|
| 24 |
4036 4713 01 |
SPACER |
|
|
| 25 |
A00J 2250 00 |
Gear 16/64T |
|
|
| 26 |
A00J H00C 00 |
PWB Assembly EE |
|
|
| 27 |
A00J M110 00 |
Brushless motor /15 |
|
|
| 28 |
A00J M115 01 |
Brushless motor /30 |
|
|
| 29 |
9314 2300 21 |
MOTOR |
|
|
| 3 |
A00J 2204 00 |
Transfer Frame /A |
|
|
| 30 |
A00J 2289 00 |
Collar |
|
|
| 4 |
A00J R7B6 00 |
TRANSFER FRAME / D |
|
|
| 5 |
A00J 2200 01 |
Gear 44/70T |
|
|
| 6 |
A00V 2406 00 |
BALL BEARING |
|
|
| 7 |
4004 2540 01 |
GEAR 88T |
|
|
| 8 |
4036 3517 01 |
GUIDE |
|
|
| 9 |
A00J 2206 00 |
Transfer Frame /C |
|
|
