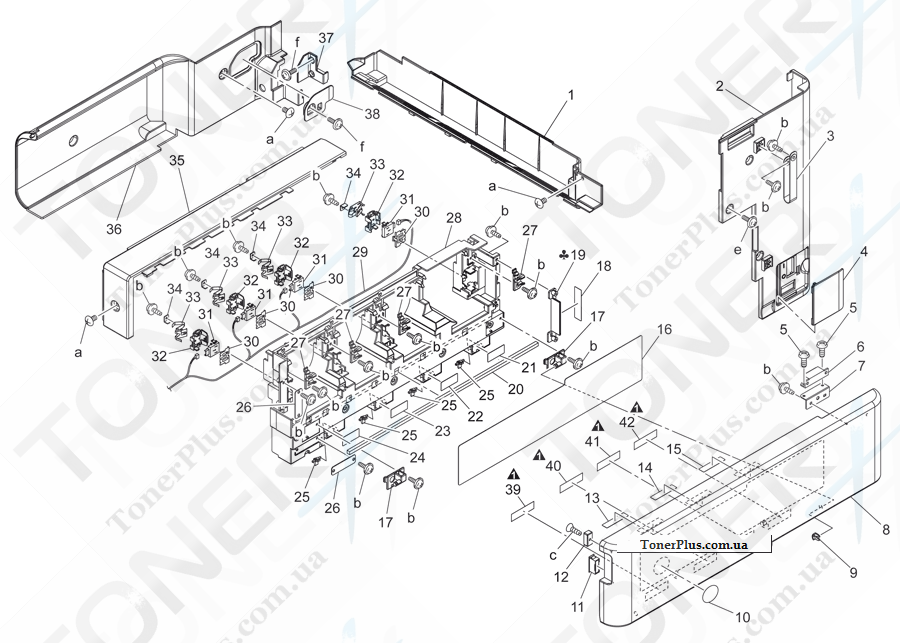

Каталог запчастей для Konica-Minolta bizhub C451 - EXTERNAL PARTS
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
A00J 1635 02 |
Paper exit Cover /Right |
|
|
| 10 |
A00J 9455 00 |
Logo Mark |
|
|
| 11 |
4030 1040 02 |
CATCH |
|
|
| 12 |
9326 2820 11 |
MAGNET |
|
|
| 13 |
A00J 9408 01 |
Label Y |
|
|
| 14 |
A00J 9409 01 |
Label M |
|
|
| 15 |
A00J 9410 01 |
Label C |
|
|
| 16 |
A00J 9403 03 |
Label TC Change |
|
|
| 17 |
A00J 1647 01 |
Open/close Shaft |
|
|
| 18 |
A00J 9411 01 |
Label K |
|
|
| 19 |
A00K 4072 01 |
REGULATING BLOCK /BLACK |
C,D1, D3, F1,F2, G1,H, |
|
| 19 |
A00K 4070 01 |
REGULATING BLOCK /BLACK |
A,A1 |
|
| 19 |
A00K 4071 01 |
REGULATING BLOCK /BLACK |
B,G2 |
|
| 2 |
A00J 1604 03 |
Cover /Front |
|
|
| 20 |
A00J 4074 00 |
SEAL |
|
|
| 21 |
A00J 9407 00 |
Label K |
|
|
| 22 |
A00J 9406 00 |
Label C |
|
|
| 23 |
A00J 9405 00 |
Label M |
|
|
| 24 |
A00J 9404 00 |
Label Y |
|
|
| 25 |
4036 5325 02 |
PAWL |
|
|
| 26 |
4038 1014 01 |
SUCTION PLATE |
|
|
| 27 |
A00J 4075 00 |
Holder |
|
|
| 28 |
A00J 1651 03 |
Cover /Inside |
|
|
| 29 |
A00J N10G 01 |
Toner Relay harness /2 |
|
|
| 3 |
4120 1014 02 |
BAND |
|
|
| 30 |
4038 2282 03 |
PLATE SPRING |
|
|
| 31 |
4136 6751 01 |
CONNECTOR PIN |
|
|
| 32 |
4038 2281 04 |
HOLDER |
|
|
| 33 |
A00J 4046 01 |
Plate spring |
|
|
| 34 |
A00J 4047 00 |
Spacer |
|
|
| 35 |
A00J 1601 00 |
Paper exit Cover /Front |
|
|
| 36 |
A00J 1634 01 |
Paper exit Cover /Rear |
|
|
| 37 |
A00J 1664 00 |
Paper exit Cover /Right |
|
|
| 38 |
A00J 1663 00 |
Paper exit Cover /Rear |
|
|
| 39 |
A00J 9472 00 |
Label |
|
|
| 4 |
A00J 1636 01 |
Cover |
|
|
| 40 |
A00J 9473 00 |
Label |
|
|
| 41 |
A00J 9474 00 |
Label |
|
|
| 42 |
A00K 9475 00 |
Label |
|
|
| 5 |
4038 1051 01 |
SCREW |
|
|
| 6 |
4475 2603 02 |
MAGNET CATCH |
|
|
| 7 |
A00J 1660 01 |
Mounting Plate /D |
|
|
| 8 |
A00J 1602 01 |
Open/close Cover |
|
|
| 9 |
56AA 4049 0 |
SHAFT STOPPER 4 |
|
|
