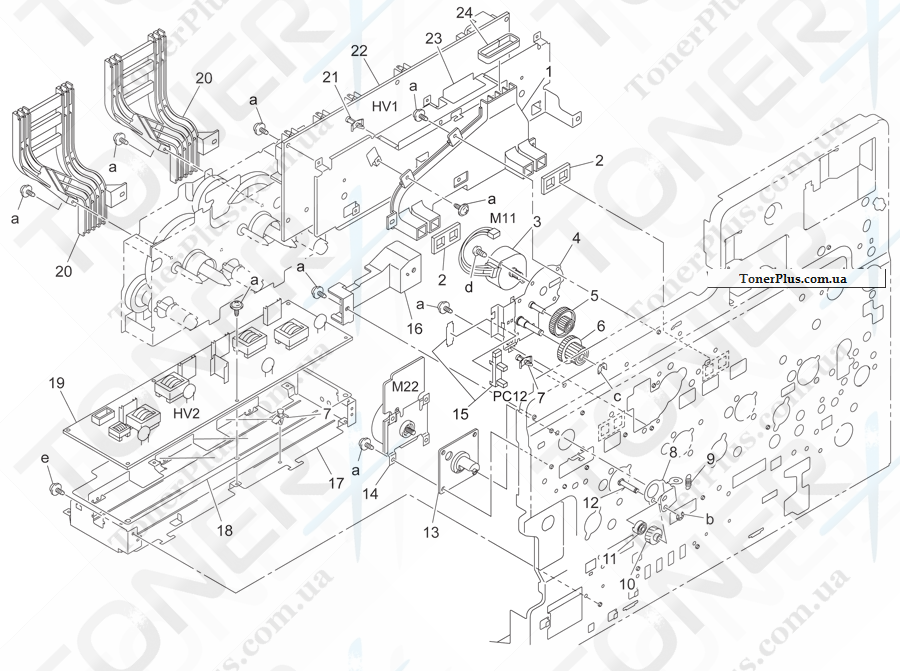

Каталог запчастей для Konica-Minolta bizhub C450P - PC DRIVE SECTION
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
4036 2481 01 |
DUCT |
D |
|
| 10 |
4036 2597 01 |
GEAR 32T |
C |
|
| 11 |
4036 2598 01 |
RING |
D |
|
| 12 |
4036 2599 01 |
PIN |
D |
|
| 13 |
4036 2595 01 |
HOLDER |
D |
|
| 14 |
9314 2300 31 |
MOTOR |
B |
|
| 15 |
4037 0901 01 |
PHOTO INTERRUPTER |
C |
|
| 16 |
4036 2215 01 |
GUIDE |
D |
|
| 17 |
4004 2209 05 |
BRACKET |
D |
|
| 18 |
4004 2253 02 |
INSULATING MEMBER |
D |
|
| 19 |
4037 6202 01 |
HV TRANSFORMER |
I |
|
| 2 |
4036 2480 01 |
SEAL |
D |
|
| 20 |
4036 2238 01 |
GUIDE |
D |
|
| 21 |
9384 1900 55 |
PWB SUPPORT 9.53H |
D |
|
| 22 |
4037 6201 01 |
HV TRANSFORMER |
I |
|
| 23 |
4036 2210 01 |
BRACKET |
D |
|
| 24 |
4036 2482 01 |
SEAL |
D |
|
| 3 |
9314 1100 71 |
MOTOR |
C |
|
| 4 |
4004 0207 01 |
BRACKET ASSY |
D |
|
| 5 |
4004 4533 01 |
GEAR 18/62T |
C |
|
| 6 |
4004 4532 01 |
GEAR 18/38T |
C |
|
| 7 |
9384 1621 21 |
PWB SUPPORT 6.4H |
D |
|
| 8 |
4036 2596 01 |
BRACKET |
D |
|
| 9 |
4004 2582 01 |
TENSION SPRING |
C |
|
