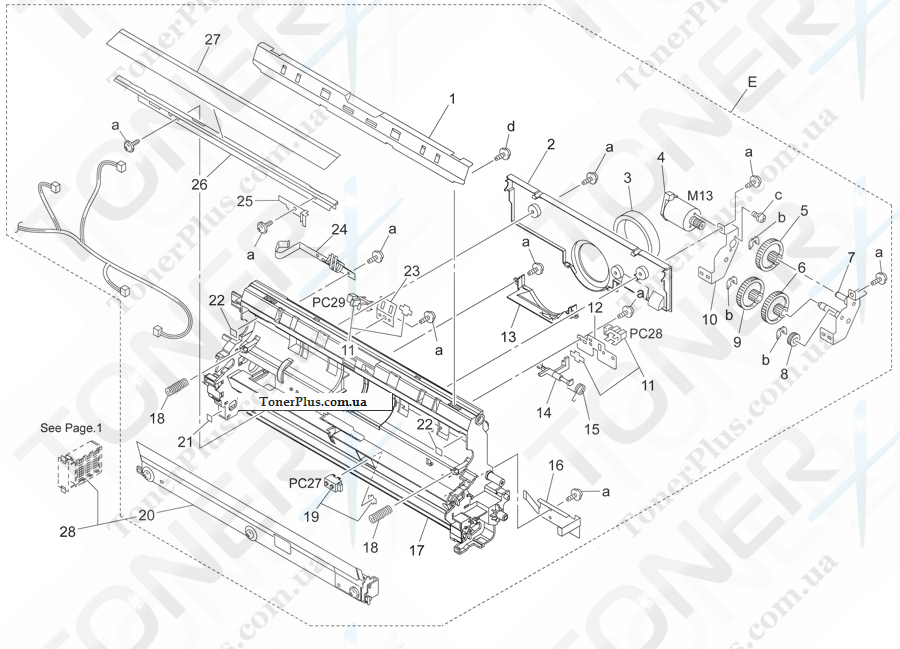

Каталог запчастей для Konica-Minolta bizhub C450P - PAPER TRANSPORT SECTION 3
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
4036 3570 03 |
GUIDE |
D |
|
| 10 |
4025 4900 01 |
BRACKET |
D |
|
| 11 |
4037 0903 01 |
PHOTO INTERRUPTER |
C |
|
| 12 |
4036 3684 01 |
BRACKET |
D |
|
| 13 |
4004 3549 03 |
LID |
D |
|
| 14 |
1164 3504 03 |
ACTUATOR |
C |
|
| 15 |
1164 3527 02 |
TORSION SPRING |
C |
|
| 16 |
4025 3523 01 |
EARTH GROUND |
D |
|
| 17 |
4036 3506 01 |
HOLDER |
D |
|
| 18 |
4025 3612 01 |
PRESSURE SPRING |
D |
|
| 19 |
4025 0901 01 |
SOLID STATE SWITCH |
C |
|
| 2 |
4025 3548 01 |
DUCT |
D |
|
| 20 |
1483 0762 00 |
P.REMOVE CLEANER |
A |
|
| 21 |
4025 7323 01 |
LABEL |
D |
|
| 22 |
4004 7318 01 |
LABEL |
D |
|
| 23 |
4025 4721 01 |
BRACKET |
D |
|
| 24 |
4004 3524 04 |
CONTACT |
D |
|
| 25 |
4025 3575 01 |
CONTACT |
D |
|
| 26 |
4025 3567 01 |
GUIDE |
D |
|
| 27 |
4025 3568 01 |
NETURALIZING MEMBER |
C |
|
| 28 |
4 049 611 |
CLEANER AND OZONE FILTER |
C |
|
| 3 |
4025 3551 01 |
SEAL |
D |
|
| 4 |
4037 0767 00 |
MOTOR ASSY |
S |
|
| 5 |
4025 4907 01 |
GEAR 16/40T |
C |
|
| 6 |
4025 4910 01 |
GEAR 12/40T |
C |
|
| 7 |
4025 0225 01 |
DRIVING ASSY |
D |
|
| 8 |
4025 4908 01 |
GEAR 15T |
C |
|
| 9 |
4025 4906 01 |
GEAR 16/64T |
C |
|
