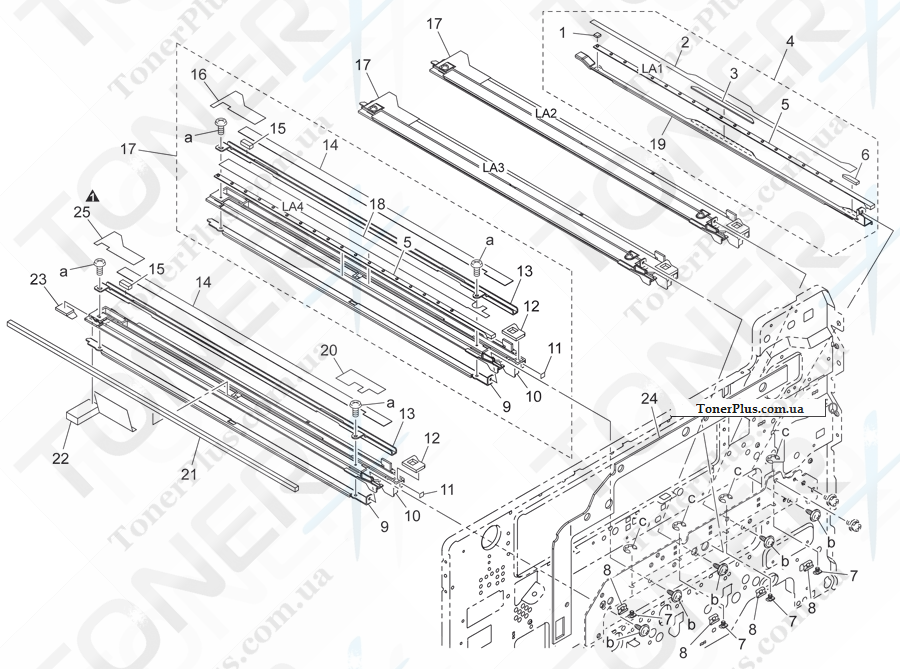

Каталог запчастей для Konica-Minolta bizhub C352P - ERASER SECTION
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
4038 2183 01 |
BRACKET |
D |
|
| 10 |
4038 2014 08 |
RAIL |
D |
|
| 11 |
4038 7309 01 |
LABEL |
D |
|
| 12 |
9J06 2461 01 |
SEAL |
C |
|
| 13 |
9J06 2032 00 |
REINFORCE PLATE |
D |
|
| 14 |
9J06 2459 03 |
COVER |
C |
|
| 15 |
9J06 2472 00 |
SEAL |
C |
|
| 16 |
9J06 2473 00 |
SEAL |
C |
|
| 17 |
9J06 R731 00 |
ERASER YMC ASSY |
C |
|
| 18 |
4038 2198 02 |
SHIELD PLATE |
C |
|
| 19 |
4038 2015 02 |
BRACKET |
D |
|
| 2 |
4038 2199 02 |
SHIELD PLATE |
C |
|
| 20 |
9J06 1010 00 |
SEAL |
C |
|
| 21 |
9J06 1015 01 |
SEAL |
C |
|
| 22 |
9J06 1017 00 |
SEAL |
C |
|
| 23 |
9J06 1016 00 |
SEAL |
C |
|
| 24 |
9J06 2458 01 |
SEAL |
C |
|
| 25 |
9J06 1018 00 |
POLYESTER FILM |
C |
|
| 3 |
4038 2182 01 |
BRACKET |
D |
|
| 4 |
9J06 R732 00 |
ERASER K ASSY |
C |
|
| 5 |
9353 2400 11 |
LED PILOT LAMP |
C |
|
| 6 |
4038 2181 01 |
BRACKET |
D |
|
| 7 |
4038 2069 01 |
SLIDER |
C |
|
| 8 |
4038 2072 04 |
PLATE SPRING |
C |
|
| 9 |
4038 2040 01 |
REINFORCE PLATE |
D |
|
