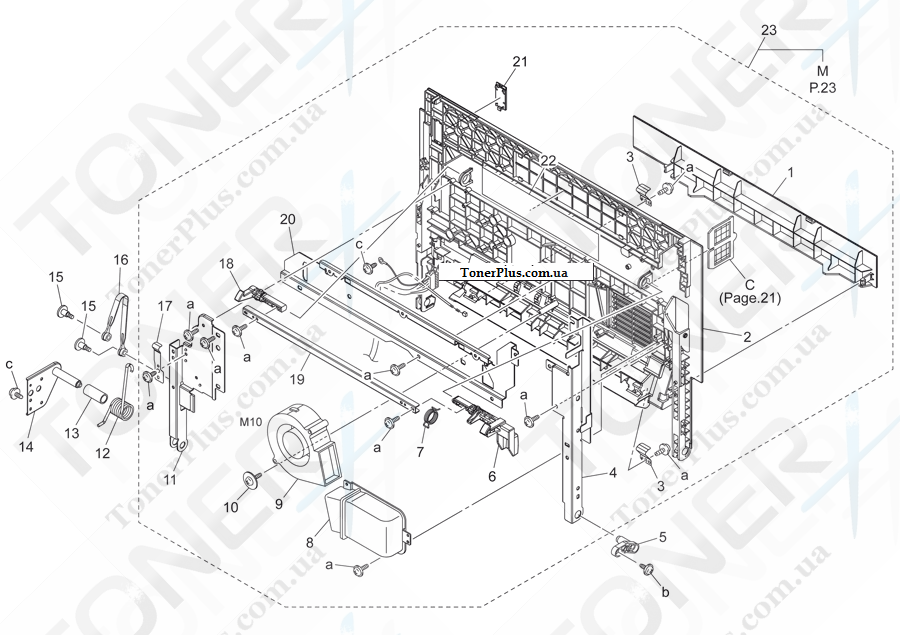

Каталог запчастей для Konica-Minolta bizhub C250 - RIGHT DOOR SECTION
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
4038 3515 02 |
COVER |
C |
|
| 10 |
4163 5293 01 |
SCREW |
C |
|
| 11 |
4038 3519 02 |
REINFORCE PLATE |
D |
|
| 12 |
4038 3512 01 |
TORSION SPRING |
C |
|
| 13 |
4038 3534 01 |
COLLAR |
C |
|
| 14 |
4038 0210 01 |
BRACKET ASSY |
D |
|
| 15 |
4038 3511 02 |
SHOULDER SCREW |
C |
|
| 16 |
4038 3523 01 |
STOPPER |
D |
|
| 17 |
4038 3571 02 |
CONTACT |
D |
|
| 18 |
4038 3507 01 |
PAWL |
D |
|
| 19 |
4038 3505 01 |
BRACKET |
D |
|
| 2 |
4038 3506 08 |
RIGHT DOOR |
D |
|
| 20 |
4038 3522 01 |
REINFORCE PLATE |
D |
|
| 21 |
4038 3521 01 |
COVER |
D |
|
| 22 |
4038 7302 01 |
LABEL JAM |
D |
|
| 23 |
4038 0752 00 |
DOOR ASSY |
S |
|
| 3 |
4038 3520 01 |
PLATE SPRING |
D |
|
| 4 |
4038 3518 01 |
REINFORCE PLATE |
D |
|
| 5 |
4038 3516 01 |
SHAFT |
D |
|
| 6 |
4038 3508 01 |
PAWL |
D |
|
| 7 |
4038 3591 01 |
TORSION SPRING |
C |
|
| 8 |
4038 3545 01 |
DUCT |
D |
|
| 9 |
9313 1000 72 |
FAN MOTOR |
C |
|
