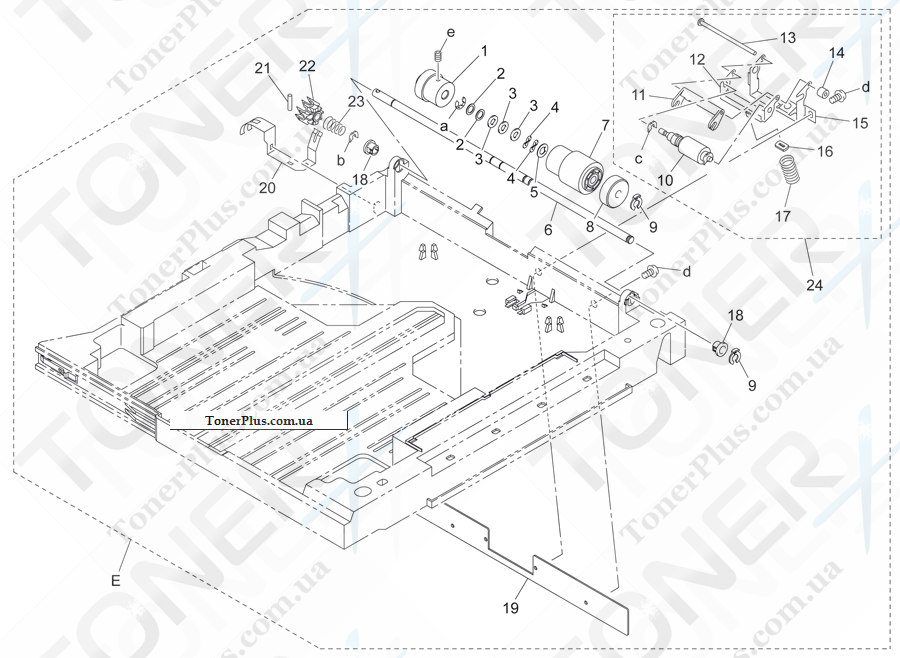

Каталог запчастей для Konica-Minolta bizhub C250 - MPT CASSETTE PAPER TAKE-UP SECTION
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
4038 3063 01 |
WEIGHT |
D |
|
| 10 |
4034 0151 01 |
SEPARATION ROLLER |
A |
|
| 11 |
4658 3035 02 |
GUIDE |
D |
|
| 12 |
4004 3003 02 |
HOLDER |
D |
|
| 13 |
4658 3040 01 |
SHAFT |
D |
|
| 14 |
4658 3047 01 |
COLLAR |
C |
|
| 15 |
4004 3004 01 |
BRACKET |
D |
|
| 16 |
1144 3097 03 |
HOLDER |
D |
|
| 17 |
4004 3006 03 |
PRESSURE SPRING |
C |
|
| 18 |
1164 3003 01 |
BUSHING |
C |
|
| 19 |
4036 3040 01 |
REINFORCE PLATE |
D |
|
| 2 |
4036 3030 01 |
WASHER |
C |
|
| 20 |
4036 3018 01 |
EARTH GROUND |
D |
|
| 21 |
4036 3014 01 |
PIN |
D |
|
| 22 |
1164 3004 03 |
PAWL |
C |
|
| 23 |
1164 3005 02 |
PRESSURE SPRING |
C |
|
| 24 |
4038 0773 00 |
ROLLER ASSY |
C |
|
| 3 |
4036 3031 01 |
WASHER |
C |
|
| 4 |
4011 3020 01 |
WASHER |
D |
|
| 5 |
1164 3066 01 |
WASHER |
C |
|
| 6 |
4004 3001 02 |
SHAFT |
D |
|
| 7 |
4034 3012 01 |
ROLLER |
A |
|
| 8 |
4004 3005 01 |
COLLAR |
C |
|
| 9 |
4658 3046 01 |
STOP RING |
C |
|
