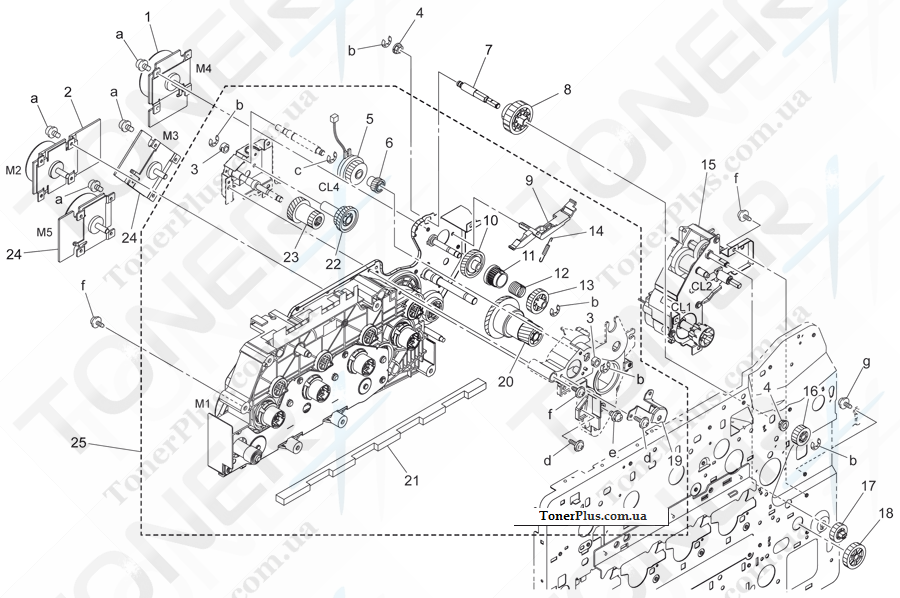

Каталог запчастей для Konica-Minolta bizhub C20 - MAIN DRIVE SECTION
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
A02F M102 00 |
Brushless motor /30 |
|
|
| 10 |
A011 2113 00 |
GEAR 58T |
|
|
| 11 |
4138 2570 01 |
RATCHET |
|
|
| 12 |
4138 2571 01 |
TORSION SPRING |
|
|
| 13 |
4138 2543 01 |
GEAR 26T |
|
|
| 14 |
4138 2573 01 |
TENSION SPRING |
|
|
| 15 |
A00F R701 00 |
Paper Take-Up Drive Assy |
|
|
| 16 |
A0FD 2141 00 |
Gear 19T |
|
|
| 17 |
4138 2523 01 |
GEAR 19T |
|
|
| 18 |
4138 2534 01 |
GEAR 27T |
|
|
| 19 |
4138 2601 01 |
HOLD PLATE |
|
|
| 2 |
A011 M100 00 |
BRUSHLESS MOTOR |
|
|
| 20 |
A00F 2106 00 |
Gear 42/112T |
|
|
| 21 |
A011 1035 00 |
SEAL |
|
|
| 22 |
4138 2584 01 |
GEAR 21 66T |
|
|
| 23 |
4138 2551 01 |
GEAR 17 50T |
|
|
| 24 |
A02E M100 00 |
Brushless motor |
|
|
| 25 |
A00F R700 00 |
Main Drive Assy |
|
|
| 3 |
4036 4730 01 |
BUSHING |
|
|
| 4 |
A00F 2139 00 |
Bearing |
|
|
| 5 |
A011 M200 00 |
CLUTCH |
|
|
| 6 |
A011 2114 00 |
GEAR 28T |
|
|
| 7 |
A0FD 2142 00 |
Shaft |
|
|
| 8 |
A00F 2140 00 |
Gear 34/18T |
|
|
| 9 |
A00F 2143 00 |
Lever |
|
|
