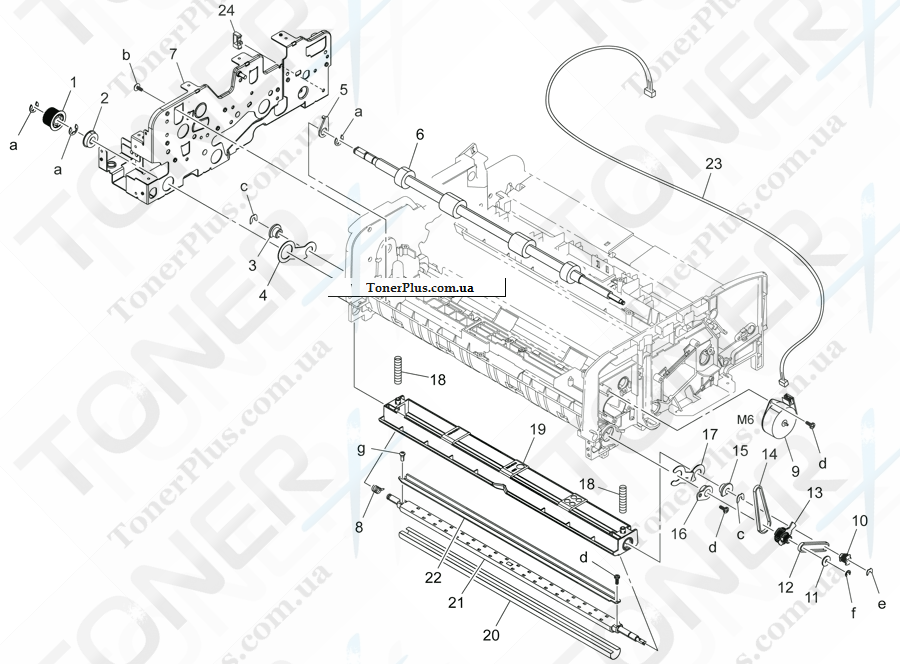

Каталог запчастей для Konica-Minolta bizhub 554e - PAPER TRANSPORT SECTION 6
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
A3CFPP3J01 |
Pulley |
C |
|
| 10 |
A3CFPP4800 |
Pulley |
C |
|
| 11 |
A143PP4H01 |
Flange |
D |
|
| 12 |
A3CFPP4900 |
Timing Belt |
C |
|
| 13 |
A3CFPP4700 |
Pulley |
C |
|
| 14 |
A3CFPP4C00 |
Timing Belt |
C |
|
| 15 |
A3CFPP4A00 |
Bushing |
C |
|
| 16 |
A3CF103400 |
Bushing |
C |
|
| 17 |
A3CFPP4300 |
Arm |
C |
|
| 18 |
A3CEPP5000 |
Pressure Spring |
C |
|
| 19 |
A3CFPP4202 |
Cover |
D |
|
| 2 |
A143PP1M00 |
Ball Bearing |
C |
|
| 20 |
A3CEPP3301 |
Sheet |
C |
|
| 21 |
A3CFPP4600 |
Shaft |
D |
|
| 22 |
A3CFPP4500 |
Brush |
C |
|
| 23 |
A3CEPP4K00 |
Wire Harness Assy |
D |
|
| 24 |
A3CEPP4X00 |
Clamp |
C |
|
| 3 |
A143PP4D02 |
Bushing |
C |
|
| 4 |
A3CFPP4400 |
Arm |
C |
|
| 5 |
A3CFPP2E00 |
Bushing |
D |
|
| 6 |
A3CFPP1G00 |
Roller |
C |
|
| 7 |
A3CEPP1203 |
Frame Assy |
C |
|
| 8 |
A3CFPP4F00 |
Tension Spring |
C |
|
| 9 |
A3CFPP5R00 |
Motor |
C |
|
