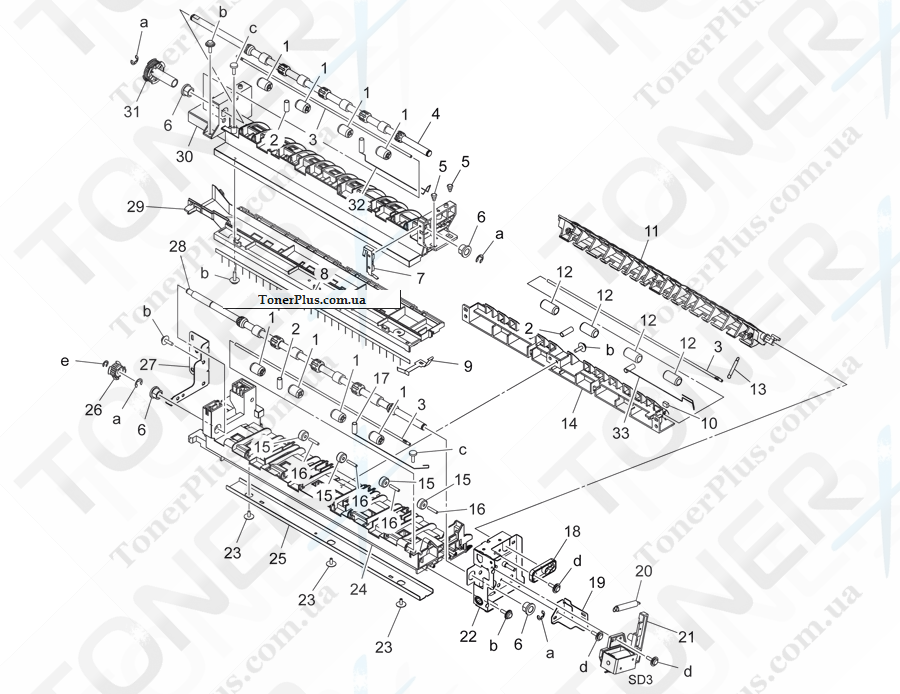

Каталог запчастей для Konica-Minolta bizhub 454e - PAPER EXIT SECTION 2
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
4004590301 |
ROLL |
C |
|
| 10 |
A161893600 |
Cushion |
D |
|
| 11 |
A161890401 |
Guide Lever |
D |
|
| 12 |
A0P0901100 |
Roll |
C |
|
| 13 |
A161892100 |
Spring |
C |
|
| 14 |
A161890203 |
Guide Part /Lower |
D |
|
| 15 |
A0ED897700 |
Collar |
C |
|
| 16 |
4036254901 |
PIN |
D |
|
| 17 |
A161900100 |
Ground Spring |
C |
|
| 18 |
A161891000 |
Bushing |
D |
|
| 19 |
A161892300 |
Mounting Plate |
D |
|
| 2 |
A161892400 |
Spring |
C |
|
| 20 |
A161892000 |
Spring |
D |
|
| 21 |
A161R72600 |
Solenoid Assy |
C |
|
| 22 |
A161F89002 |
Caulking(Mounting Plate) |
D |
|
| 23 |
4163529301 |
SCREW |
C |
|
| 24 |
A161890102 |
Paper exit Main body |
D |
|
| 25 |
A161893500 |
Regulating Plate |
D |
|
| 26 |
A161891301 |
Pulley 18T |
D |
|
| 27 |
A161892902 |
Fixing Part |
D |
|
| 28 |
A161890300 |
Roller |
C |
|
| 29 |
A161895212 |
Paper exit Guide /Lower |
D |
|
| 3 |
4025598401 |
SHAFT |
D |
|
| 30 |
A161895113 |
Paper exit Guide /Upper |
D |
|
| 31 |
A161895800 |
Pulley 44T |
D |
|
| 32 |
A161900201 |
Ground Spring |
C |
|
| 33 |
A161900300 |
Ground Spring |
C |
|
| 4 |
A161895400 |
Roller |
C |
|
| 5 |
1164202801 |
SHOULDER SCREW |
D |
|
| 6 |
A0ED891100 |
Bushing |
D |
|
| 7 |
A161895502 |
Ground Contact /Upper |
D |
|
| 8 |
A161894000 |
Neutralizing Brush |
C |
|
| 9 |
A161895600 |
Ground Contact /Lower |
D |
|
