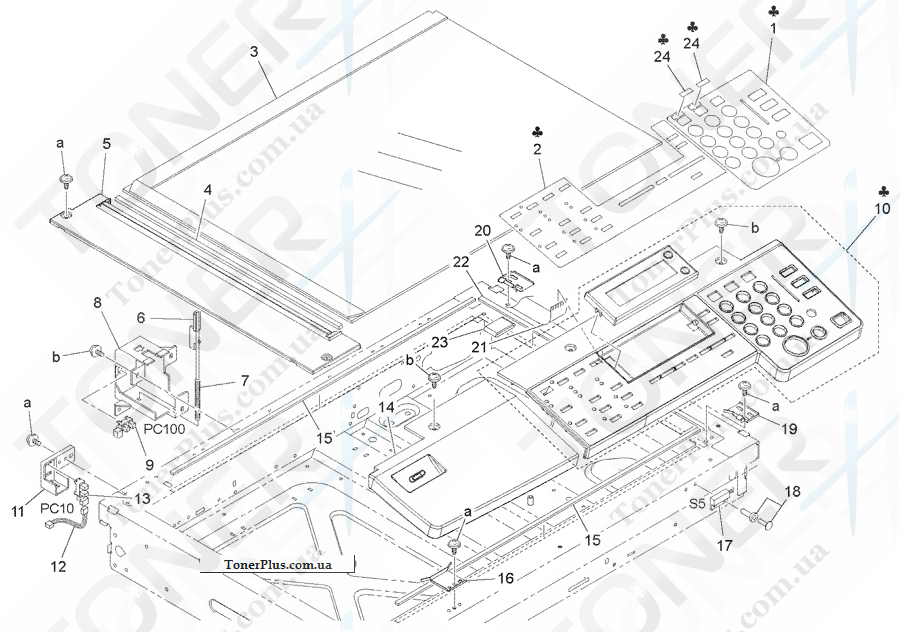

Каталог запчастей для Konica-Minolta bizhub 162R - CONTROL PANEL
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 1 |
4034 1201 01 |
FACE SHEET |
B,D,E,F1,F2,G1,G2,I,K |
|
| 1 |
4035 1203 02 |
FACE SHEET |
A1 |
|
| 1 |
4034 1205 01 |
FACE SHEET |
H |
|
| 1 |
4034 1207 01 |
FACE SHEET |
J |
|
| 10 |
4034 6073 01 |
CONTROL PANEL ASSY |
J |
|
| 10 |
4035 6071 01 |
CONTROL PANEL ASSY |
A1 |
|
| 10 |
4034 6072 01 |
CONTROL PANEL ASSY |
C |
|
| 10 |
4034 6074 01 |
CONTROL PANEL ASSY |
H |
|
| 10 |
4034 6071 01 |
CONTROL PANEL ASSY |
B,C,D,E,F1,F2,G1,G2,I,K |
|
| 11 |
4508 1033 01 |
COVER |
|
|
| 12 |
4508 1025 01 |
WIRE HARNESS ASSY |
|
|
| 13 |
4508 1024 01 |
PHOTOINTTRUPTTER |
|
|
| 14 |
4508 1069 01 |
COVER |
|
|
| 15 |
4508 1005 01 |
SEAL |
|
|
| 16 |
4506 1005 01 |
SET PLATE |
|
|
| 17 |
4647 1039 01 |
MAGNETIC SW |
|
|
| 18 |
4506 1002 01 |
PIN |
|
|
| 19 |
4508 1004 01 |
PLATE SPRING |
|
|
| 2 |
4034 1208 01 |
FACE SHEET |
J |
|
| 2 |
4035 1204 02 |
FACE SHEET |
A1 |
|
| 2 |
4034 1202 01 |
FACE SHEET |
B,D,E,F1,F2,G1,G2,I,K |
|
| 2 |
4034 1206 01 |
FACE SHEET |
H |
|
| 20 |
4508 1003 01 |
PLATE SPRING |
|
|
| 21 |
4508 1037 01 |
WIRE HARNESS ASSY |
|
|
| 22 |
4506 1004 01 |
CUSHION |
|
|
| 23 |
9326 1100 11 |
FERRITE CORE |
|
|
| 24 |
4035 1205 01 |
LABEL |
A1 |
|
| 3 |
4508 1006 01 |
ORIGINAL GLASS |
|
|
| 4 |
4508 1032 01 |
SEAL |
|
|
| 5 |
4508 1002 01 |
COVER |
|
|
| 6 |
4034 1381 01 |
LEVER |
|
|
| 7 |
4034 1383 01 |
PRESSURE SPRING |
|
|
| 8 |
4034 1382 01 |
HOLDER |
|
|
| 9 |
9335 1300 61 |
PHOTO INTERRUPTER |
|
|
