| 1 |
|
Guide, cassette lock |
|
|
| 10 |
|
Cam, back end sensing |
|
|
| 11 |
|
Lever, back end sensing |
|
|
| 12 |
|
Arm, lift |
|
|
| 13 |
|
Cam, lift arm |
|
|
| 14 |
|
Cap, lift arm cam |
|
|
| 15 |
|
Slider, lifter arm |
|
|
| 16 |
|
Spring, grounding |
|
|
| 17 |
|
Spring, compression |
|
|
| 18 |
|
Link, back end sensing switch |
|
|
| 19 |
|
Shaft, back end sensing link |
|
|
| 2 |
|
Cover, cassette, lower |
|
|
| 20 |
|
Cover, width sensing |
|
|
| 21 |
|
Cam, width sensing |
|
|
| 22 |
|
Bushing |
|
|
| 23 |
|
Plate, lifter |
|
|
| 24 |
|
Plate, cassette support |
|
|
| 25 |
|
Rack, lifter |
|
|
| 26 |
|
Gear, 14T |
|
|
| 27 |
|
Gear, 17T |
|
|
| 28 |
|
Spring, tension |
|
|
| 29 |
|
Label, cassette control, lower |
|
|
| 3 |
|
Cam, remnant, lower |
|
|
| 30 |
|
Screw, M3X8 |
|
|
| 31 |
|
Ring, E |
|
|
| 32 |
|
Back end limit assembly |
|
|
| 33 |
|
Front paper side end assembly |
|
|
| 34 |
|
Rear paper side end assembly |
|
|
| 35 |
RM1-2983-000CN |
Separation block assembly |
|
|
| 36 |
|
Separation roller assembly |
|
|
| 37 |
|
Holder, remnant, lower |
|
|
| 38 |
|
Spring, compression |
|
|
| 39 |
|
Spring, tension |
|
|
| 4 |
|
Cover, back end sensing |
|
|
| 5 |
|
Lever, remnant detect, lower |
|
|
| 501 |
|
Screw, tapping, truss head, M4X10 |
|
|
| 502 |
|
Plain washer |
|
|
| 503 |
|
Plain washer |
|
|
| 6 |
|
Rail, attachment, left |
|
|
| 7 |
|
Roller, cassette rail |
|
|
| 8 |
|
Rail, attachment, right |
|
|
| 9 |
|
Slider, back end limit |
|
|
| A01 |
|
Block, side end size clicker |
|
|
| A02 |
|
Plate, back end limit |
|
|
| A03 |
|
Holder, back end limit |
|
|
| A04 |
|
Lever, back end limit lock |
|
|
| A05 |
|
Lock, back end limit |
|
|
| A06 |
|
Block, back end size clicker |
|
|
| A07 |
|
Spring, compression |
|
|
| A08 |
|
Spring, compression |
|
|
| A09 |
|
Spring, compression |
|
|
| A10 |
|
Lever, side |
|
|
| A11 |
|
Lock, side |
|
|
| A12 |
|
Spring, compression |
|
|
| A13 |
|
Guide, side, front |
|
|
| A14 |
|
Rack, side |
|
|
| A15 |
|
Holder, side guide, front |
|
|
| A16 |
|
Shaft, separation block |
|
|
| A17 |
|
Screw, D, M3X6 |
|
|
| A18 |
|
Clamp, paper, middle |
|
|
| A19 |
|
Clamp, paper, rear |
|
|
| A20 |
|
Ring, E |
|
|
| A21 |
|
Holder, side guide, rear |
|
|
| A22 |
|
Clamp, paper, front |
|
|
| A23 |
|
Plate, paper side end, rear |
|
|
| A24 |
|
Spring, compression |
|
|
| A25 |
|
Spring, compression |
|
|
| A26 |
|
Body, cassette, upper |
|
|
| A27 |
|
Block, separation roller |
|
|
| A28 |
|
Holder, separation block |
|
|
| A29 |
|
Spring, torsion |
|
|
| A30 |
|
Base, separation roller |
|
|
| A31 |
|
Cover, separation roller block |
|
|
| All |
RM1-2979-000CN |

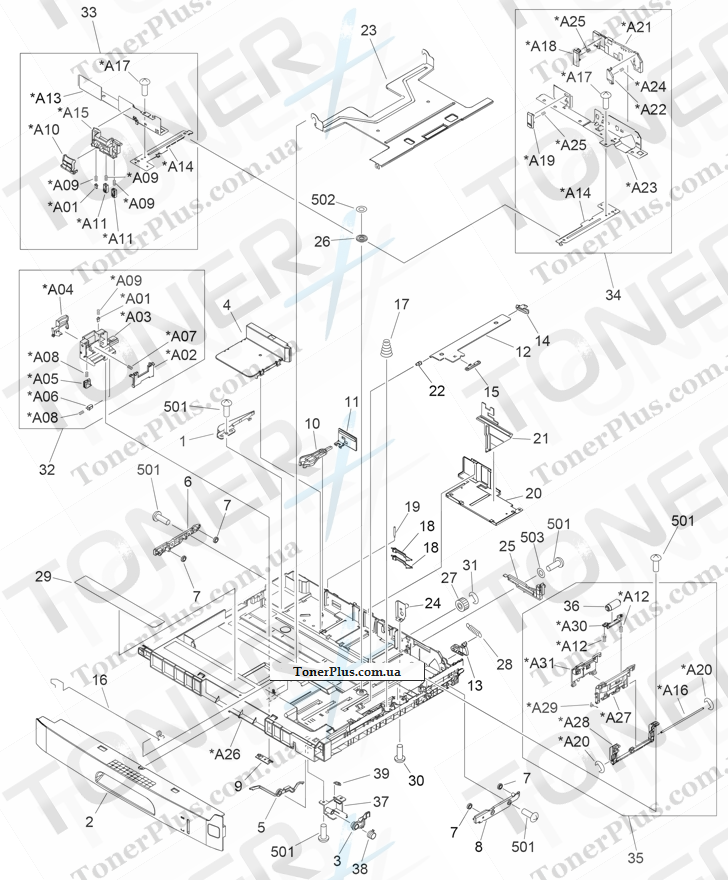

Lower cassette (engine) |
|
|
