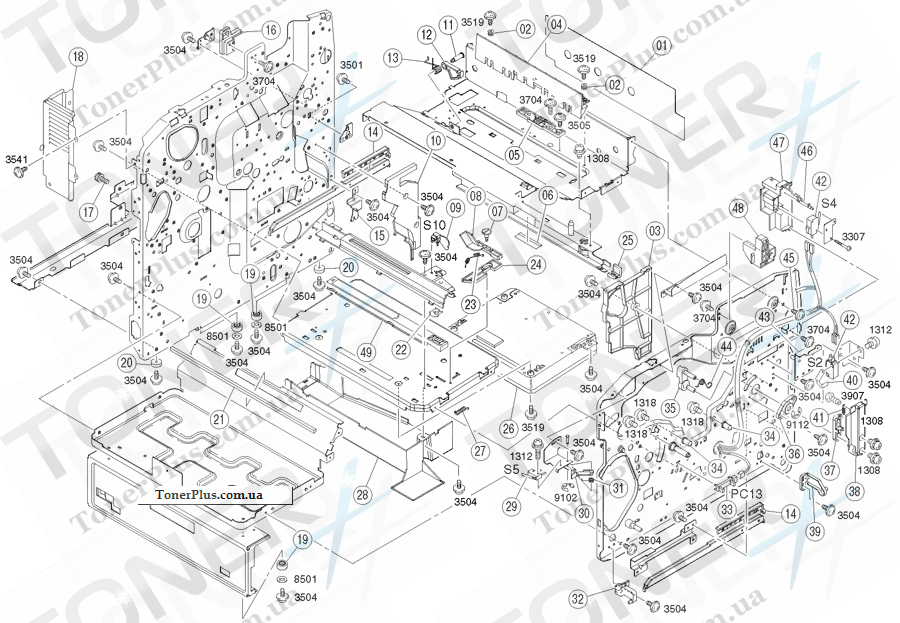

Каталог запчастей для Epson Aculaser C2000 - Main Unit 8
| № |
Номер партии |
Описание |
Примечание |
|
|
|
| 01 |
1058200 |
PROTECTION |
|
|
| 02 |
1058202 |
SPACER |
|
|
| 03 |
1058203 |
COVER |
|
|
| 04 |
1058204 |
GUIDE |
|
|
| 05 |
1058205 |
HOLDER ASSY |
|
|
| 06 |
1058206 |
SHIELD PLATE |
|
|
| 07 |
1058207 |
SHOULDER SCREW |
|
|
| 08 |
1058208 |
LEVER |
|
|
| 09 |
2036366 |
SWITCH |
|
|
| 11 |
1058212 |
SHOULDER SCREW |
|
|
| 12 |
1058213 |
LEVER |
|
|
| 13 |
1058214 |
TORSION SPRING |
|
|
| 14 |
1058215 |
CAP |
|
|
| 15 |
1058216 |
BRACKET |
|
|
| 16 |
1058218 |
STOPPER |
|
|
| 17 |
1058219 |
SCREW |
|
|
| 18 |
1058220 |
REAR COVER |
|
|
| 19 |
1046693 |
RUBBER FOOT |
|
|
| 21 |
1058224 |
SEAL |
|
|
| 22 |
1058225 |
STOPPER |
|
|
| 23 |
1058227 |
TENSION SPRING |
|
|
| 24 |
1058228 |
LEVER |
|
|
| 25 |
1058229 |
GUIDE |
|
|
| 26 |
2036367 |
PRINT HEAD ASSY |
|
|
| 27 |
1058231 |
TENSION SPRING |
|
|
| 28 |
1058232 |
DUCT |
|
|
| 29 |
2036368 |
MICRO SWITCH |
|
|
| 30 |
1058234 |
LEVER |
|
|
| 31 |
1058236 |
TORSION SPRING |
|
|
| 32 |
1058237 |
HINGE |
|
|
| 33 |
2036369 |
SOLID STATE SWITCH |
|
|
| 34 |
1058238 |
PIN |
|
|
| 35 |
1058241 |
LEVER |
|
|
| 36 |
1058243 |
BUSHING |
|
|
| 37 |
1058244 |
LEVER |
|
|
| 38 |
1058245 |
LEVER |
|
|
| 39 |
1058246 |
HINGE |
|
|
| 40 |
1058255 |
PLATE NUT |
|
|
| 41 |
1058256 |
TENSION SPRING |
|
|
| 42 |
2030612 |
MICRO SWITCH |
|
|
| 43 |
1058257 |
CALKING ASSY |
|
|
| 44 |
1058258 |
TORSION SPRING |
|
|
| 45 |
1058054 |
SCREW |
|
|
| 46 |
1058259 |
LEVER |
|
|
| 47 |
1058260 |
HOLDER |
|
|
| 48 |
1058261 |
STOPPER |
|
|
| 49 |
1056730 |
PRINT HEAD FILTER |
|
|
